Standard Press
Large Standard
Extra Large Press
| Metric | Imperial |
|---|---|
| 2440 x 1220 | 8ft x 4ft |
| 1220 x 2440 | 4ft x 8ft |
| 1525 x 1220 | 5ft x 4ft |
| 1525 x 1270 | |
| 1525 x 1525 | 5ft x 5ft |
| 1525 x 3050 | 5ft x 10ft |
| 1250 x 2500 | |
| 2500 x 1250 |
| Metric | Imperial |
|---|---|
| 1220 x 2745 | 4ft x 9ft |
| 1220 x 3050 | 4ft x 10ft |
| 1220 x 3340 | 4ft x 11ft |
| 1220 x 3660 | 4ft x 12ft |
| 1500 x 2500 | |
| 1500 x 3000 | |
| 1525 x 2745 | 5ft x 9ft |
| 1525 x 3660 | 5ft x 12ft |
| Metric | Imperial |
|---|---|
| 1830 x 3050 | 6ft x 10ft |
| 1830 x 3340 | 6ft x 11ft |
| 1830 x 3660 | 6ft x 12ft |
| 1830 x 3850 | 6ft x 12ft 6" |
| 2150 x 3050 | 7ft x 10ft |
| 2150 x 3340 | 7ft x 11ft |
| 2150 x 3850 | 7ft x 12ft 6" |
| 2150 x 4000 | |
| 2290 x 4000 |
| Metric | Imperial |
|---|---|
| 2440 x 1220 | 8ft x 4ft |
| 1220 x 2440 | 4ft x 8ft |
| 1525 x 1220 | 5ft x 4ft |
| 1525 x 1270 | |
| 1525 x 1525 | 5ft x 5ft |
| 1525 x 3050 | 5ft x 10ft |
| 1250 x 2500 | |
| 2500 x 1250 |
| Metric | Imperial |
|---|---|
| 1220 x 2745 | 4ft x 9ft |
| 1220 x 3050 | 4ft x 10ft |
| 1220 x 3340 | 4ft x 11ft |
| 1220 x 3660 | 4ft x 12ft |
| 1500 x 2500 | |
| 1500 x 3000 | |
| 1525 x 2745 | 5ft x 9ft |
| 1525 x 3660 | 5ft x 12ft |
| Metric | Imperial |
|---|---|
| 1830 x 3050 | 6ft x 10ft |
| 1830 x 3340 | 6ft x 11ft |
| 1830 x 3660 | 6ft x 12ft |
| 1830 x 3850 | 6ft x 12ft 6" |
| 2150 x 3050 | 7ft x 10ft |
| 2150 x 3340 | 7ft x 11ft |
| 2150 x 3850 | 7ft x 12ft 6" |
| 2150 x 4000 | |
| 2290 x 4000 |
Thickness
9mm / 12mm / 15mm / 18mm / 21mm
Other thickness on request
6.5mm / 15mm / 24mm / 27mm / 30mm / 35mm / 40mm
Faces
Phenol Overlay
Dark brown as standard
Paper impregnated with phenol resin
Moisture and chemical resistant. Does not crack.
Available in 120g and 240g
Weight
680kg per M3*
*approximate and subject to natural variation
Edges
Edge sealed with exterior acrylic paint to prevent moisture ingress
To match phenol face colour
Formaldehyde
In accordance with the standard EN 13986
Formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Pack Size
9mm - 44 sheets
12mm - 33 sheets
18mm - 22 sheets
21mm - 19 sheets
Bonding
EN314-2 class 3 - dark brown glue, exterior conditions
(previously WBP: Weather and Boil Proof)
Core Construction
Standard birch plywood multi-laminated construction
Internal veneers: 1.4mm thick birch throughout
Thickness & Panel Size
18mm 2440 x 1220
Faces
MDO Overlay: Resin impregnated craft paper. Must be oiled twice prior to first use and once before every other use.
Reverse: Dark brown phenolic fim balancer
Weight
450kg per M3*
*approximate and subject to natural variation
Edges
Edge sealed with light brown water resistant paint
Formaldehyde
In accordance with the standard EN 13986
Formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Pack Size
18mm - 50 sheets
Bonding
EN314-2 class 3 - dark brown glue, exterior conditions
(previously WBP: Weather and Boil Proof)
Core Construction
Standard spruce plywood multi-laminated construction
Thickness
Standard thickness: 18mm
Special order: 9mm / 12mm / 15mm / 21mm / 24mm
Faces
1.6mm thick composite of wood fibres and polypropylene. It resists various kinds of damage, will release well and maintains a long performance life. Bonded with C4 class glues according to EN 12765. UV resistance is average to good.
Weight
680kg per M3*
*approximate and subject to natural variation
Edges
Exterior acrylic paint to prevent moisture ingress
To match face colour
Formaldehyde
In accordance with the standard EN 13986
Formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Panel Sizes
1220 x 3050
1250 x 2500 / 3000 / 3340 / 3660
1500 x 2500 / 3000
1525 x 2440 / 3050 / 3340 / 3660
Bonding
EN314-2 class 3 - dark brown glue, exterior conditions
(previously WBP: Weather and Boil Proof)
Core Construction
Standard birch plywood multi-laminated construction
Internal veneers: 1.4mm thick birch throughout
Plywood Formwork Panels
Plywood for Concrete Formwork
Concrete Shuttering Panels
Plywood importers delivering commercial quantities to businesses across the UK
Plywood overlaid with a smooth coating for concrete formwork or shuttering
We offer dark brown smooth phenol, MDO (medium density overlay) or polypropylene faced panels
Edges sealed in water-proof paint to prevent moisture ingress
Cut to size service for replacement panels for popular formwork systems
Phenol Faced Birch Plywood
Birch throughout plywood core, exterior glue bonded, edges sealed
The smooth phenol surface is smooth, glossy and hard. It resists abrasion, it is weather and moisture proof and resists commonly used chemicals, dilute acids and alkalis. The surface is easy to clean with water or steam. Can be re-used many times.
Panel Sizes
The majority of our customers take cut to size panels. We have UK facilities for quick cutting, or can offer cut panels directly from the mill.
Below are full size panels that can be offered, with 1220 x 2440 being the standard stock item we hold.
Specifications
MDO Plywood
MDO gives a matt surface finish to the struck concrete and minimises grain pattern transfer
Spruce MDO is light weight and easy to handle on site
Known as Wisa-Form MDO panels
Medium Density Overlay Panels
Specifications
Poliform Plywood
Riga Poliform - Birch plywood core overlaid on both faces with a special composite material, that is ecologically safe and recyclable.
Produces a superior appearance to the concrete surface and when properly used the manufacturer estimates 100+ uses. Heavy duty formwork plywood.
Specifications

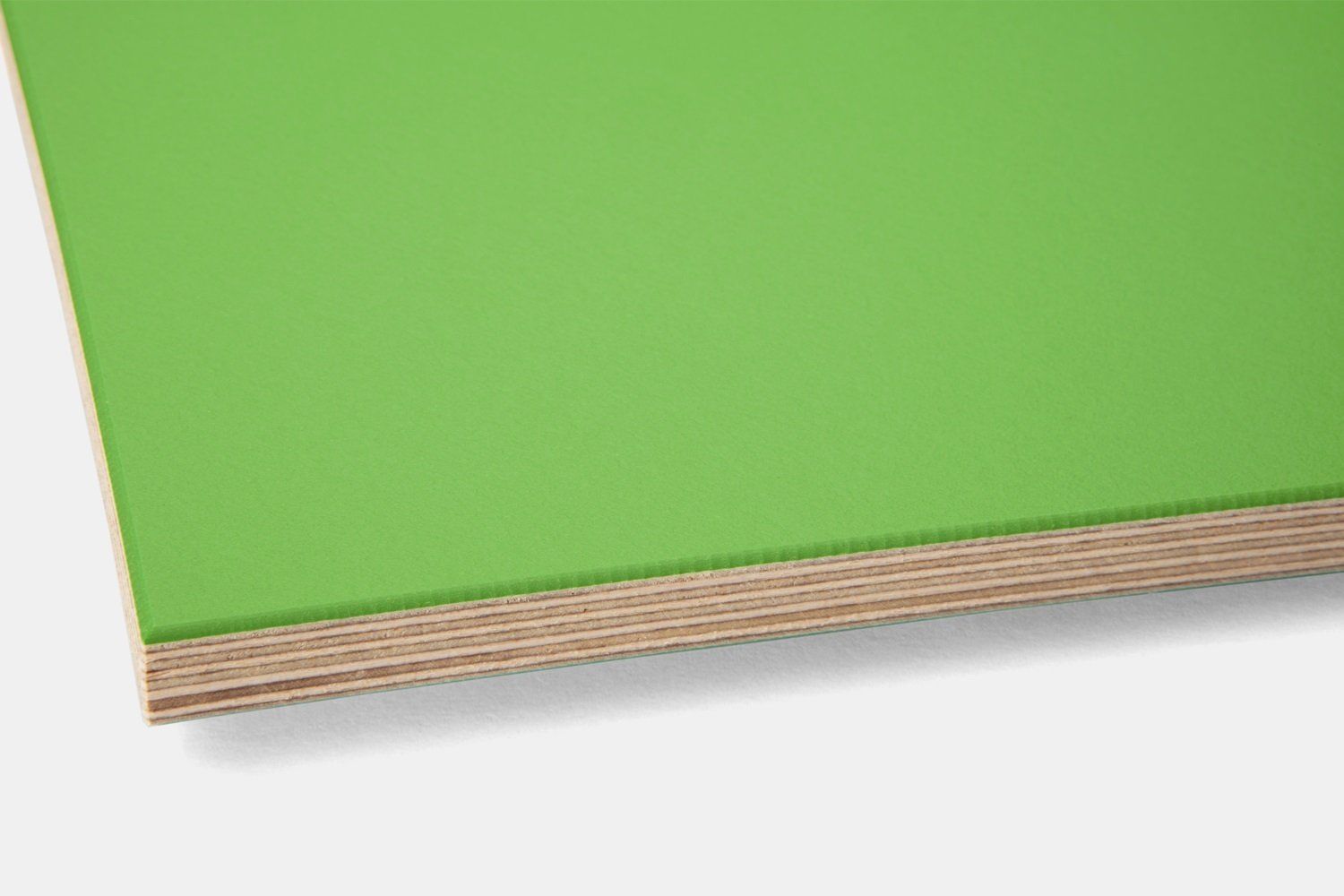

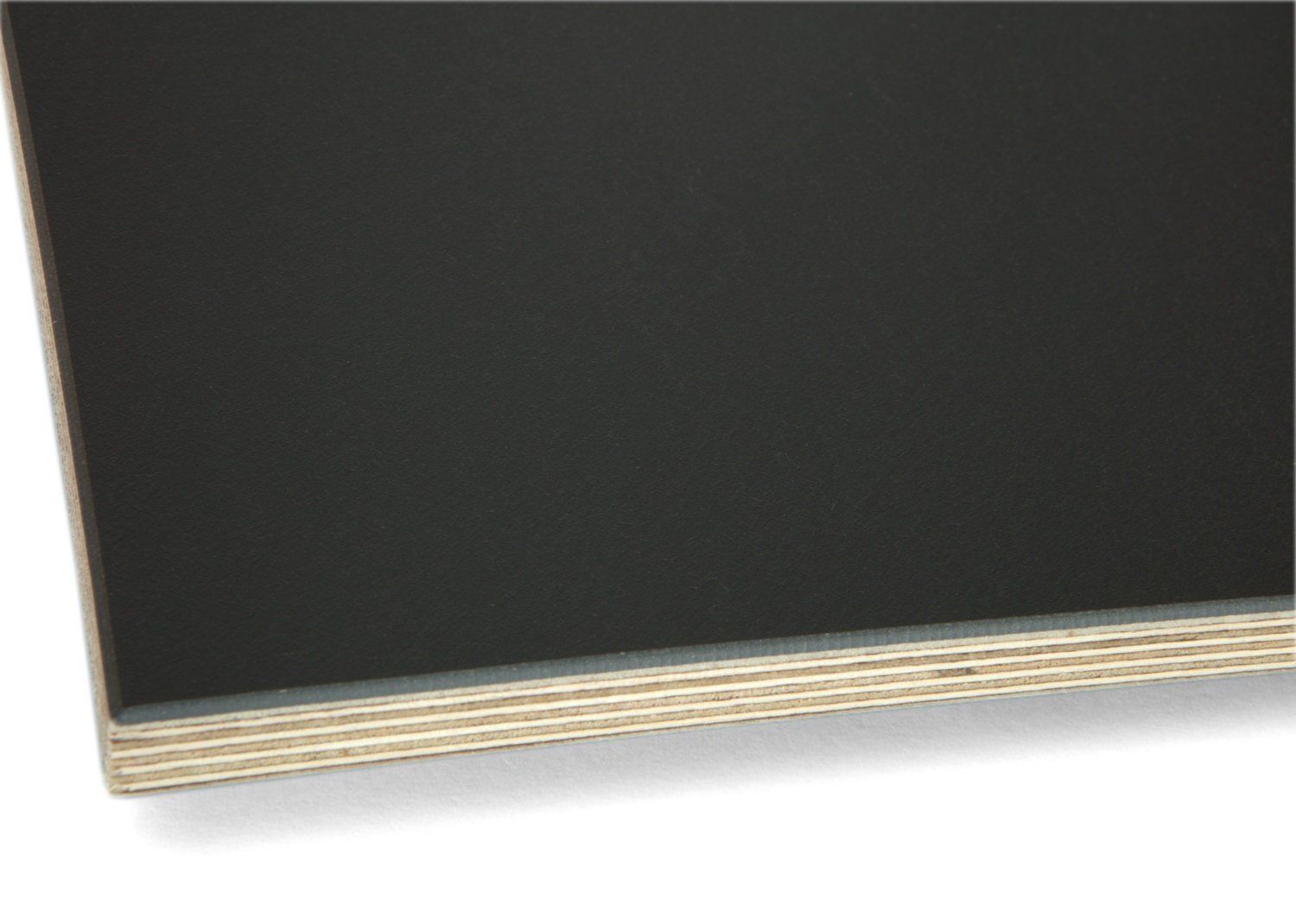

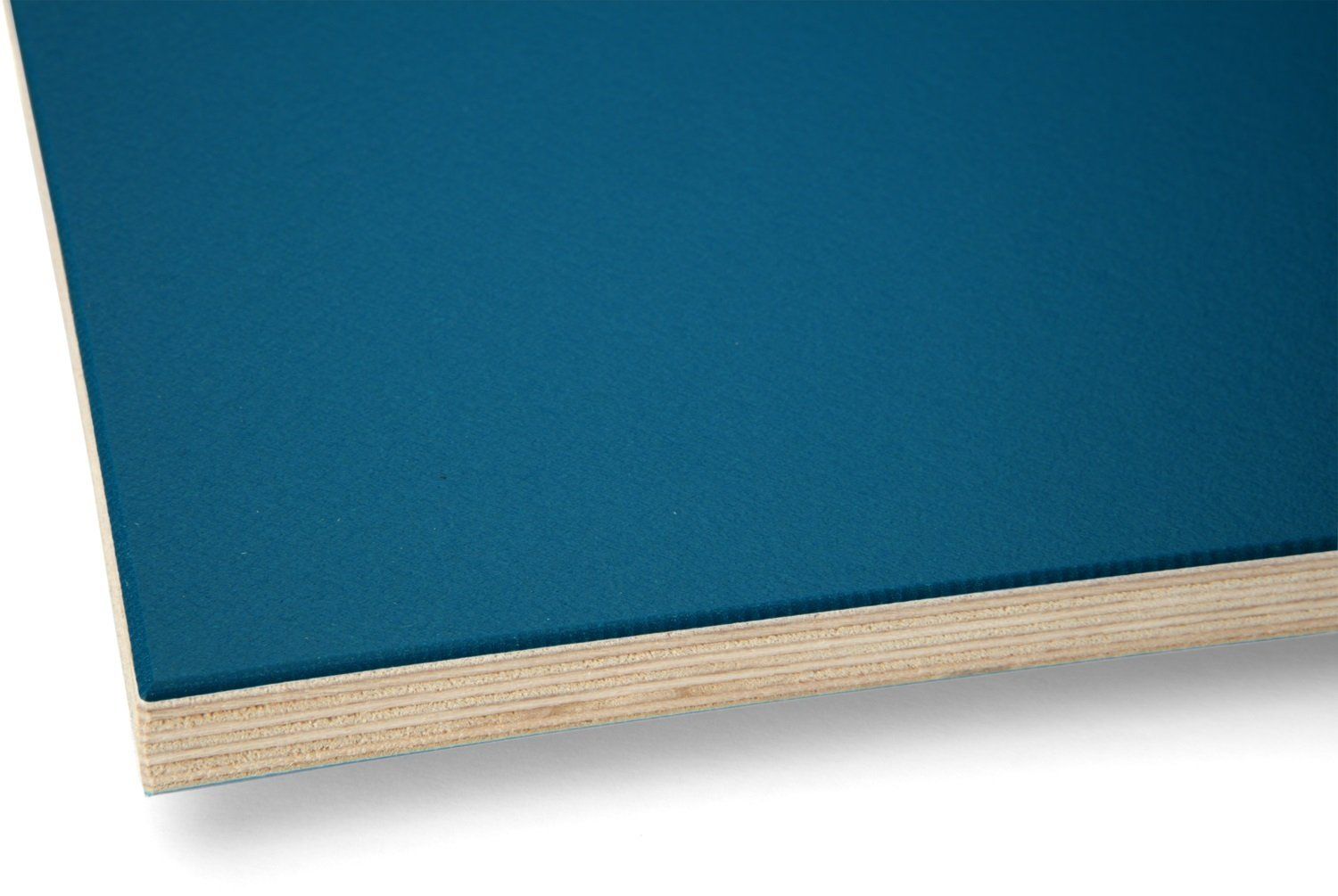

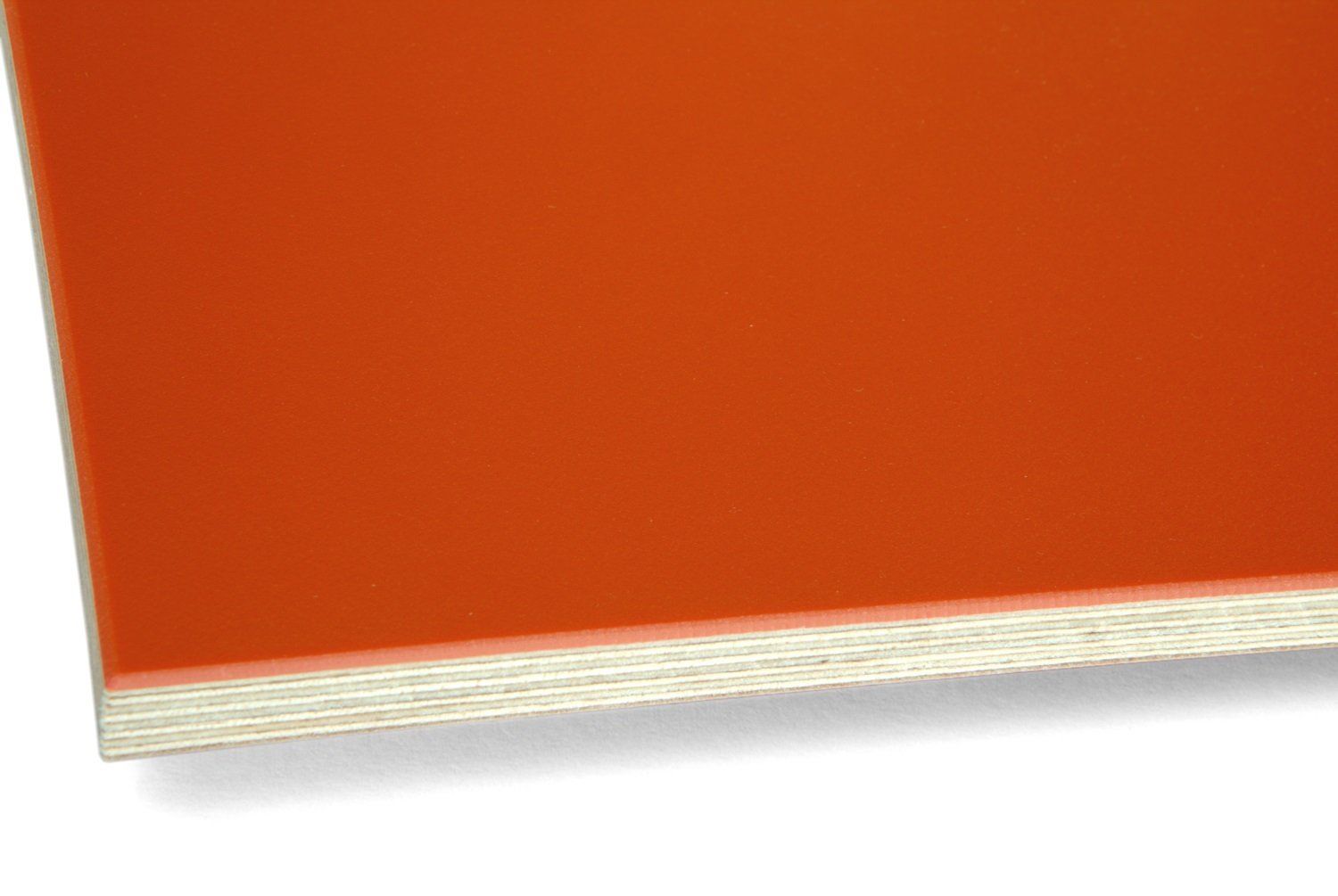

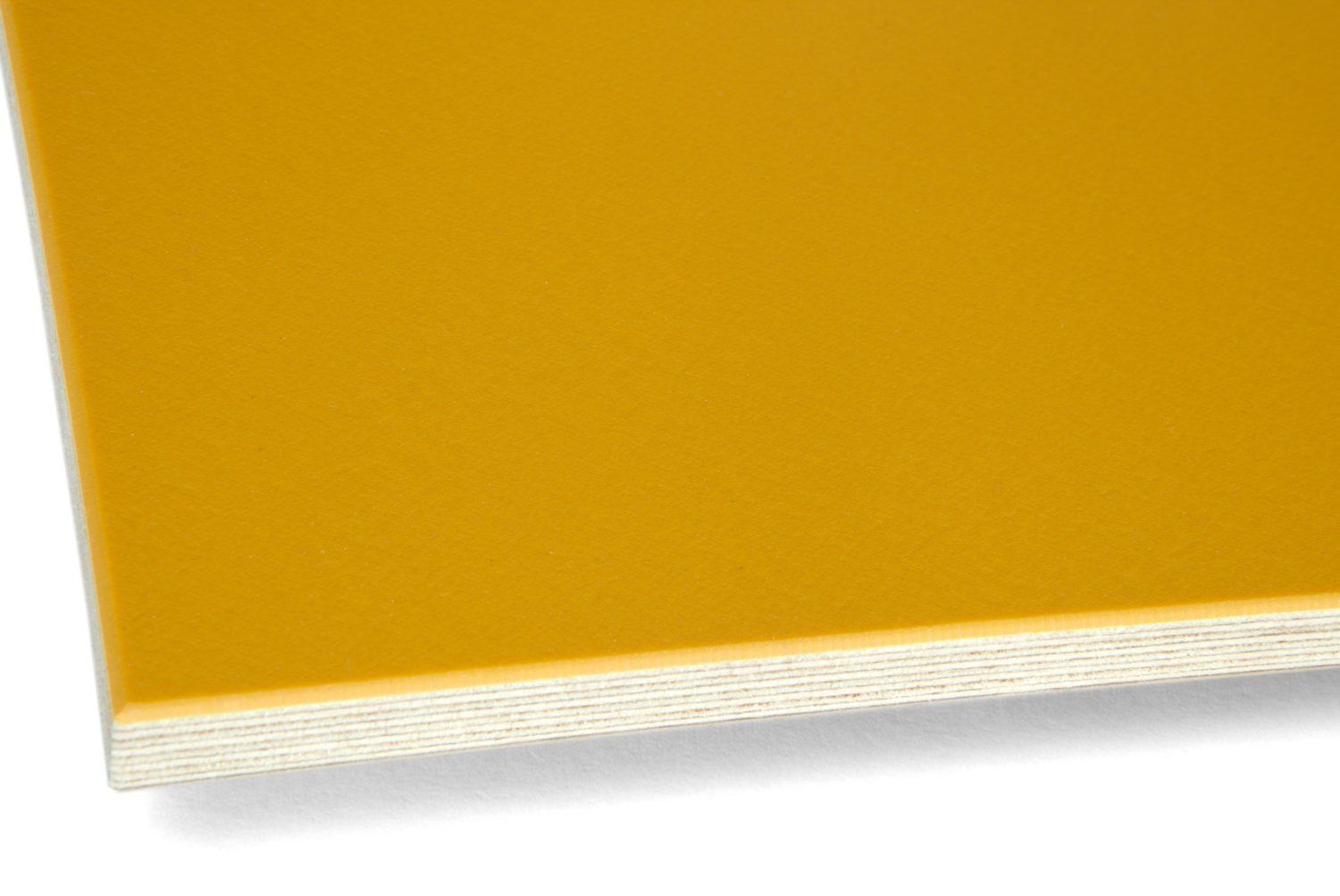

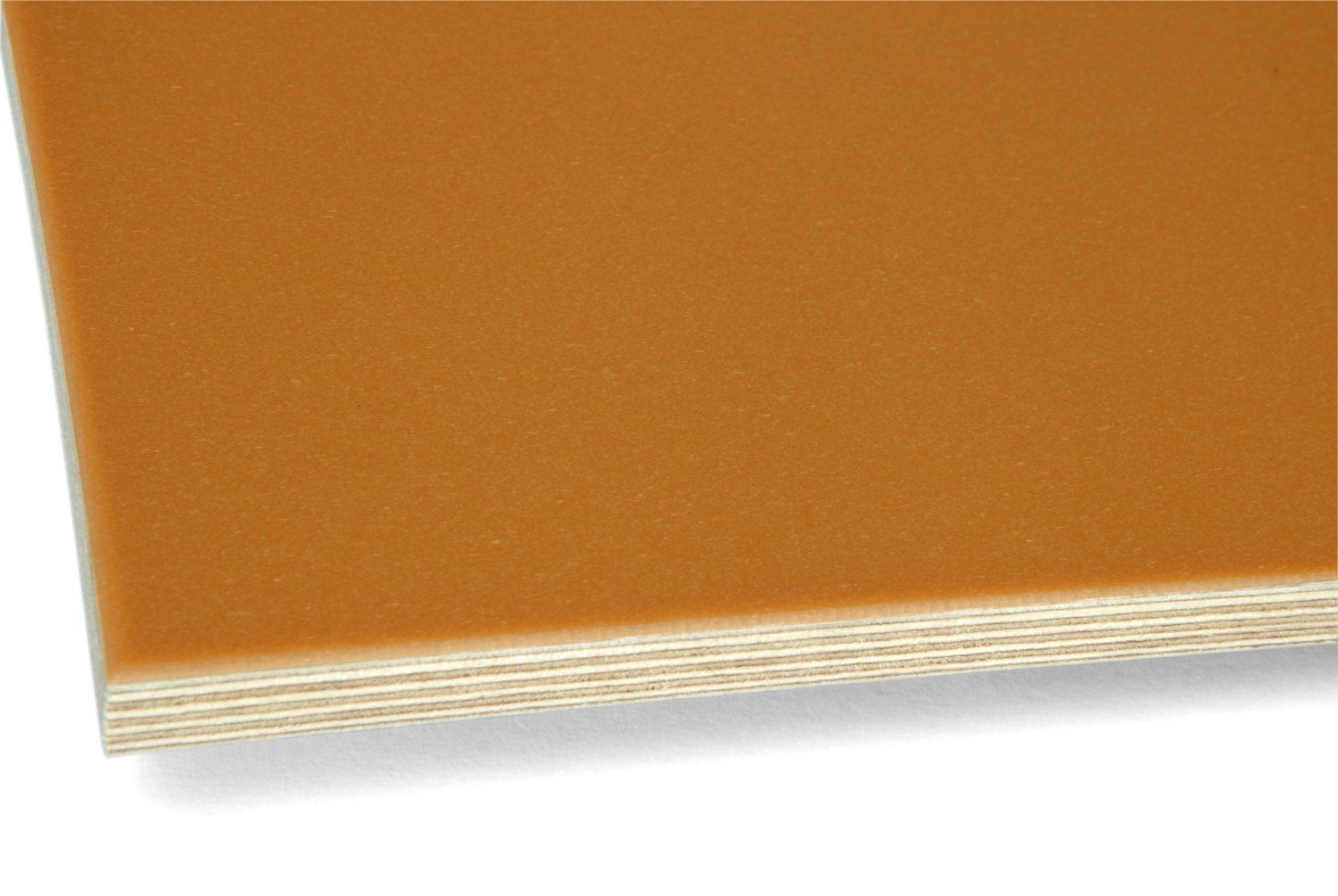

Poliform Colours
Wisa-Form Elephant
Specifications
Cutting Service
Cut to Size Formwork Plywood
CNC Machined Panels
Edges Sealed with Exterior Paint
Fast UK Cutting Service
Allow 10-14 working days for our cut to size service, depending on volumes and complexity
We stock a wide range of standard and specialist formwork and shuttering panels. For non standard requirements we are able to cut, machine and edge seal in the UK from our grounded stock or provide forward shipments direct from the mill.
We can offer the panel you require to suit your budget and the required concrete finish. Raw panels for standard work or overlaid panels for high quality projects. We supply a range of panels and components to recognised industry names.
Data sheets and strength tables are available. Contact us for more information.
Popular Formwork Systems
Doka Topec
Doka Frami
Doka Framax
Peri Sky Deck
Peri Trio
Birch plywood core with wood-plastic composite face and a phenol reverse
Thickness
Standard thickness: 18mm or 21mm
Faces
Face: 1.6mm light grey special plastic coating
Reverse: 220g dark brown phenolic film
Weight
680kg per M3*
*approximate and subject to natural variation
Edges
Exterior acrylic paint to prevent moisture ingress
To match face colour
Formaldehyde
In accordance with the standard EN 13986
Formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Panel Sizes
1220 x 3050
1250 x 2500 / 3000 / 3340 / 3660
1500 x 2500 / 3000
1525 x 2440 / 3050 / 3340 / 3660
Bonding
EN314-2 class 3 - dark brown glue, exterior conditions
(previously WBP: Weather and Boil Proof)
Core Construction
Standard birch plywood multi-laminated construction
Internal veneers: 1.4mm thick birch throughout
Not offered as a decorative panel
Colours are for site identification purposes or corporate branding considerations
Request a Quote
| Metric | Imperial |
|---|---|
| 2440 x 1220 | 8ft x 4ft |
| 1220 x 2440 | 4ft x 8ft |
| 1525 x 1220 | 5ft x 4ft |
| 1525 x 1270 | |
| 1525 x 1525 | 5ft x 5ft |
| 1525 x 3050 | 5ft x 10ft |
| 1250 x 2500 | |
| 2500 x 1250 |
| Metric | Imperial |
|---|---|
| 1220 x 2745 | 4ft x 9ft |
| 1220 x 3050 | 4ft x 10ft |
| 1220 x 3340 | 4ft x 11ft |
| 1220 x 3660 | 4ft x 12ft |
| 1500 x 2500 | |
| 1500 x 3000 | |
| 1525 x 2745 | 5ft x 9ft |
| 1525 x 3660 | 5ft x 12ft |
| Metric | Imperial |
|---|---|
| 1830 x 3050 | 6ft x 10ft |
| 1830 x 3340 | 6ft x 11ft |
| 1830 x 3660 | 6ft x 12ft |
| 1830 x 3850 | 6ft x 12ft 6" |
| 2150 x 3050 | 7ft x 10ft |
| 2150 x 3340 | 7ft x 11ft |
| 2150 x 3850 | 7ft x 12ft 6" |
| 2150 x 4000 | |
| 2290 x 4000 |
Plywood Formwork Panels
Plywood for Concrete
Formwork
Concrete
Shuttering Panels
Plywood importers delivering commercial quantities to businesses across the UK
Plywood overlaid with a smooth coating for concrete formwork or shuttering
We offer dark brown smooth phenol, MDO (medium density overlay) or polypropylene faced panels
Edges sealed in water-proof paint to prevent moisture ingress
Cut to size service for replacement panels for popular formwork systems
Phenol Faced Birch Plywood
Birch throughout plywood core, exterior glue bonded, edges sealed
The smooth phenol surface is smooth, glossy and hard. It resists abrasion, it is weather and moisture proof and resists commonly used chemicals, dilute acids and alkalis.
The surface is easy to clean with water or steam. Can be re-used many times.
Panel Sizes
The majority of our customers take cut to size panels. We have UK facilities for quick cutting, or can offer cut panels directly from the mill.
Below are full size panels that can be offered, with 1220 x 2440 being the standard stock item we hold.
Standard Press
Large Press
Extra Large Press
Phenol Overlay
Dark brown as standard
Paper impregnated with phenol resin
Moisture and chemical resistant. Does not crack
Available in 120g and 240g
Pack Size
9mm - 44 sheets
12mm - 33 sheets
18mm - 22 sheets
21mm - 19 sheets
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements (test method EN 717 Part 2)
Thickness
9mm / 12mm / 15mm / 18mm / 21mm
Other thickness on request
6.5mm / 15mm / 24mm / 27mm
30mm / 35mm / 40mm
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match phenol face colour
Core Construction
Standard birch plywood
multi-laminated construction
Internal veneers: 1.4mm thick birch throughout
Weight
640 - 700 kg/m3
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Specifications
MDO Plywood
MDO gives a matt surface finish to the struck concrete and minimises grain pattern transfer
Spruce MDO is light weight and easy to handle on site
Known as Wisa-Form MDO panels
Faces
MDO Overlay
Resin impregnated craft paper. Must be oiled twice prior to first use and once before every other use.
Reverse
Dark brown phenolic fim balancer
Pack Size
18mm - 50 sheets
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements (test method EN 717 Part 2)
Thickness
18mm
Edge Sealing
Edge sealed with light brown water resistant paint
Core Construction
Standard spruce plywood
multi-laminated construction
Weight
450kg/m3
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Medium Density Overlay Panels
Specifications
Poliform Plywood
Faces
1.6mm thick composite of wood fibres and polypropylene. It resists various kinds of damage, will release well and maintains a long performance life. Bonded with C4 class glues according to EN 12765. UV resistance is average to good.
Panel Sizes
1220 x 3050
1250 x 2500 / 3000 / 3340 / 3660
1500 x 2500 / 3000
1525 x 2440 / 3050 / 3340 / 3660
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements (test method EN 717 Part 2)
Thickness
Standard thickness is 18mm
Special order:
9mm / 12mm / 15mm / 21mm / 24mm
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match face colour
Core Construction
Standard birch plywood
multi-laminated construction
Internal veneers: 1.4mm thick birch throughout
Weight
680kg/m3
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Riga Poliform - Birch plywood core overlaid on both faces with a special composite material, that is ecologically safe and recyclable.
Produces a superior appearance to the concrete surface and when properly used the manufacturer estimates 100+ uses.
Heavy duty formwork plywood.
Specifications
Poliform Colours
Wisa-Form Elephant
Specifications
Cutting Service
Cut to Size Formwork Plywood
CNC Machined Panels
Edges Sealed Exterior Paint
Fast UK Cutting Service
Allow 10-14 working days for our cut to size service, depending on volumes and complexity
We stock a wide range of standard and specialist formwork and shuttering panels. For non standard requirements we are able to cut, machine and edge seal in the UK from our grounded stock or provide forward shipments direct from the mill.
We can offer the panel you require to suit your budget and the required concrete finish. Raw panels for standard work or overlaid panels for high quality projects. We supply a range of panels and components to recognised industry names.
Data sheets and strength tables are available.
Contact us for more information.
Faces
Face: 1.6mm light grey special plastic coating
Reverse: 220g dark brown phenolic film
Panel Sizes
1220 x 3050
1250 x 2500 / 3000 / 3340 / 3660
1500 x 2500 / 3000
1525 x 2440 / 3050 / 3340 / 3660
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements (test method EN 717 Part 2)
Thickness
Standard thickness is 18mm or 21mm
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match face colour
Core Construction
Standard birch plywood
multi-laminated construction
Internal veneers: 1.4mm thick birch throughout
Weight
680kg/m3
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Popular Formwork Systems
Doka Topec
Doka Frami
Doka Framax
Peri Sky Deck
Peri Trio
Birch plywood core
with wood-plastic composite face and a phenol reverse
Not offered as a decorative panel
Colours are for site identification purposes or corporate branding considerations
Request a Quote
Here to help...
Documents
Here to help...
Here to help...
Composites
composites@spp.co.uk
01992 414000
Timber
timber@spp.co.uk
01992 414000
